Product Introduction

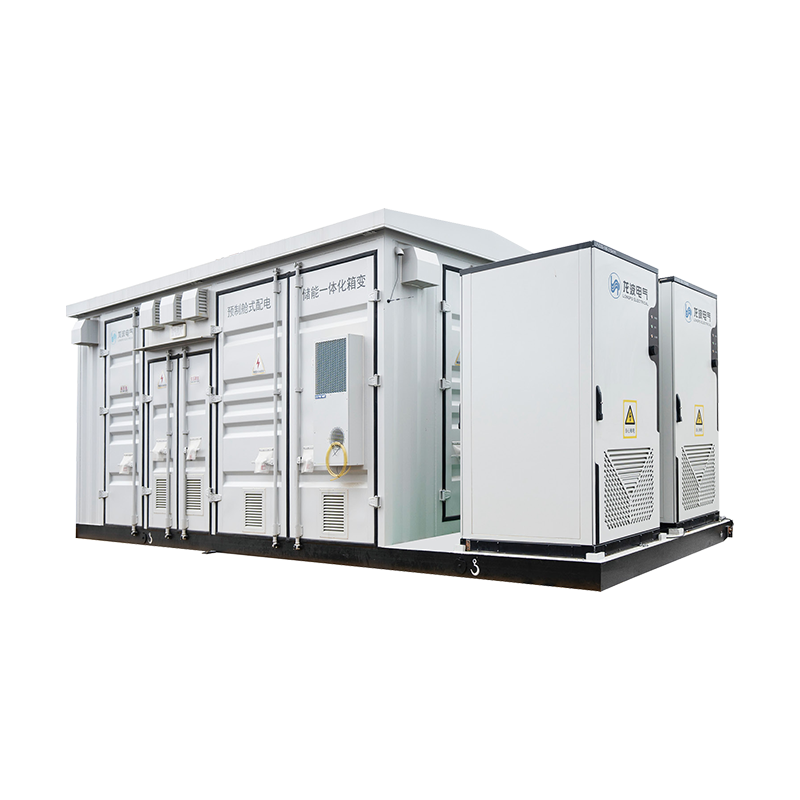

Structurally,the entire structure consists of an upper prefabricated cabin and a lower movable flatbed cart,facilitating transportation.

From a functional perspective,it is composed of four parts as a whole:the high-voltage room,the transformer room,the low-voltage room and the energy storage system.

It can be directly connected to the 10kV power grid system and is equipped with a 400kVA dry-type transformer.Low-voltage room multi-loop feeder system cabinet.

Energy storage capacity:200kW/430kWh.The energy storage system supports off-grid operation and is suitable for peak shaving and valley filling as well as capacity expansion.

When used as a backup power supply,it can achieve uninterrupted switching.

The high and low voltage cabinets meet the standardization certification of State Grid,and the energy storage system complies with national standards such as GB/T 36276,GB/T 34131,GB/T 34120,and GB/T 34133.

Product features

Product composition:State Grid standardized distributionSystemcabinet+Distributed Liquid-cooled energyStorage system cabinet(ALLIN ONE);

The high-voltage powerdistribution adopts anenvironmentally friendlygasprotectioncabinet,which efficientlyreduces the occupied space of the equipment and hashighsafety.Thelow-voltagepower distribution adopts an electricdrawer cabinet,whichis convenient to operateand hasa high degree of automation.

lexible installation methods: fixed type/mobile type;

Capable of peak shaving and valley filling,temporary capacity increase,reduction of electricity costs,demand costs,etc.

lt can alsobe used as anemergencypowersource,improving the guarantee ofpower supply

The energy storage system supportslocal andremote control.TheEMS cloud platform interfaceis simple and convenientfor operation andmaintenance.

The entire cabinet is equipped with an active fire protection system,ensuring safe and reliable operation.

It has a high protection level,low noise and is convenient for transportation.

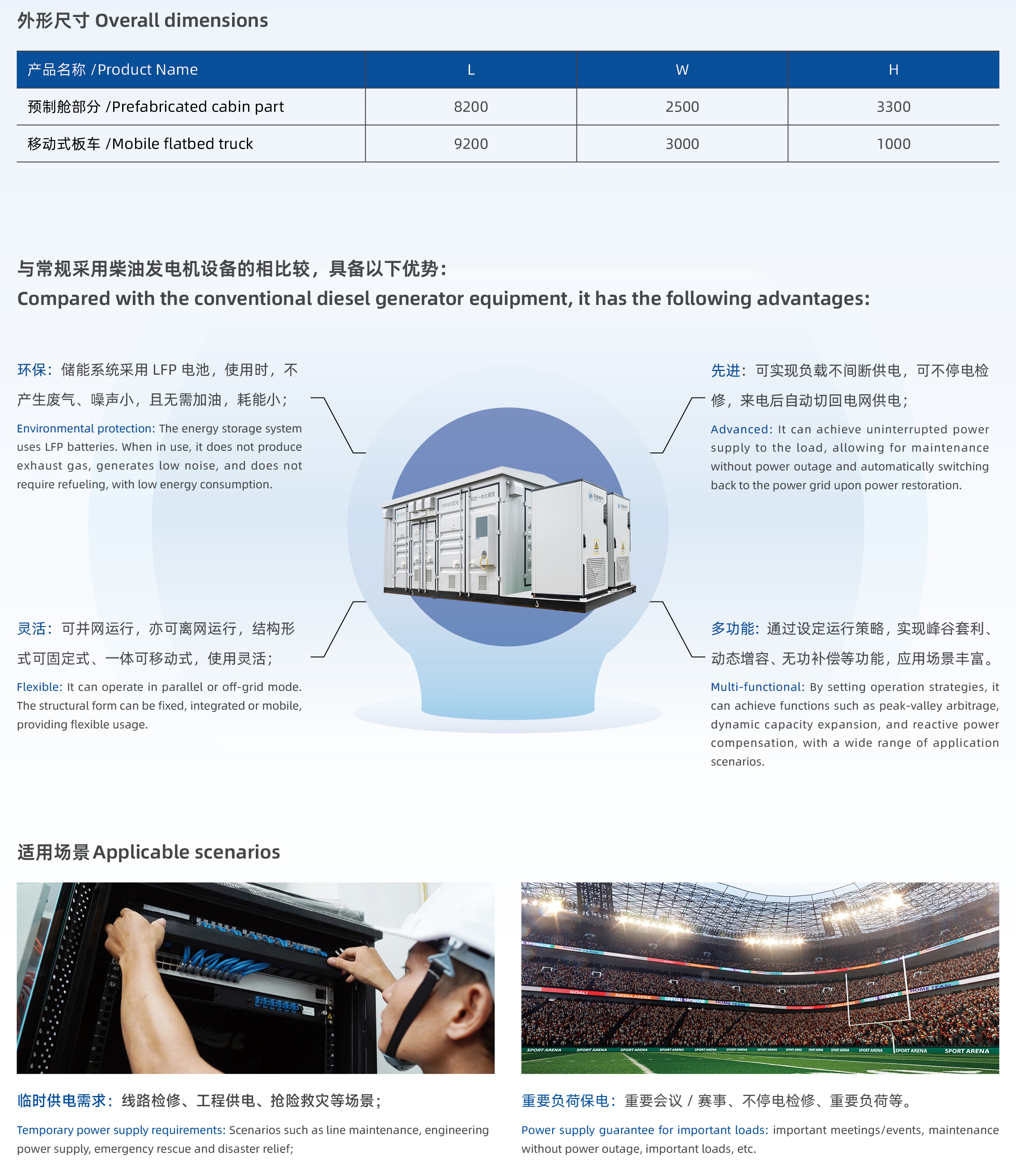

Overall dimensions
